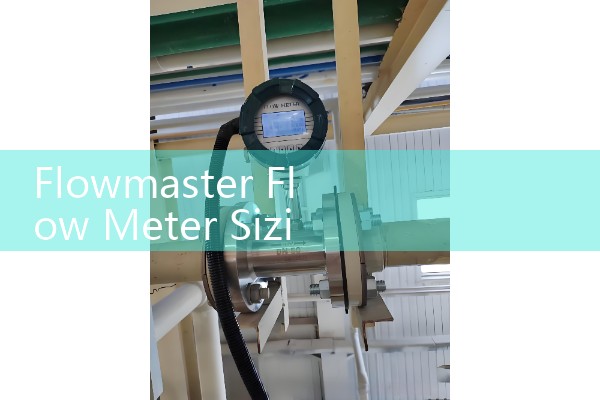

Flowmaster Flow Meter Sizing: Industrial Volumetric Measuring Tools for Fleet and Vehicle Diagnostics
Quick Answer: Flowmaster flow meter sizing helps you match industrial volumetric measuring tools to diesel, gasoline, engine oil, transmission fluid, brake fluid, and coolant test loops. For most fleet and vehicle diagnostics, DN10 to DN25 oval gear flow meters cover 0.2 to 300 L/h with 4-20 mA HART or pulse output. Send us your fluid type, viscosity in cP, pressure in bar, temperature in °C, pipe size in DN, and flow range to get a sizing proposal from Silver Automation Instruments.
What Flowmaster Flow Meter Sizing Means in Fleet Diagnostics
Fleet workshops and vehicle test benches do not measure water. They measure diesel, biodiesel, engine oil, transmission fluid, brake fluid, and coolant. Flowmaster flow meter sizing uses viscosity, flow range, pressure drop, and connection size to select a positive displacement meter. Silver Automation Instruments supplies oval gear flow meters that fit many of these diagnostic loops.
A typical diesel return line test on a 12 L engine runs between 20 and 80 L/h at 2 to 5 bar. A DN15 oval gear flow meter with a PT100 temperature probe covers this range. For transmission fluid at 40 °C, viscosity may reach 45 cP. Standard turbine meters drift at low flow. Oval gear meters do not.
Oval Gear Flow Meters for Fuel Consumption Measurement
Oval gear flow meters are the core industrial volumetric measuring tool for fleet diagnostics. They use two interlocking oval rotors. Each rotor revolution captures a fixed volume. This gives repeatable pulses per litre. We often recommend the Silver Instruments SIOG series for diesel and light oil.
DN10 covers 0.2 to 20 L/h. DN15 covers 1 to 100 L/h. DN25 covers 5 to 300 L/h. Accuracy is ±0.5 percent of reading. Repeatability is ±0.03 percent. Outputs include pulse, 4-20 mA, RS485 Modbus, and optional HART. Process connections include G1/4, G1/2, G3/4, NPT, or flange. Pressure rating is up to 40 bar standard. Temperature range is -20 to 120 °C.
Fleet and Vehicle Diagnostic Applications
Fleet operators in Southeast Asia and Australia use flow meters on mobile fuel bowsers. A bus fleet in Indonesia installed DN15 oval gear meters on 14 diesel dispensers. They track fuel issued per bus per shift. The meters deliver totalised litres via Modbus to a site PLC.
Vehicle test benches need low flow measurement. A brake fluid flush machine measures 0.3 to 2 L/min. That equals 18 to 120 L/h. A DN10 oval gear flow meter with 0.1 L per pulse resolution works well.
Coolant flow diagnostics in radiator test rigs run 10 to 60 L/min. For that range use an electromagnetic flow meter, not a small positive displacement meter. Silver Automation Instruments supplies both types. This is an important sizing split.
Sizing Inputs That Matter
Most engineers skip this part. They send only pipe size. Then the meter arrives with the wrong viscosity calibration or a pressure rating too low. Flowmaster flow meter sizing should include fluid name, viscosity at operating temperature, flow range, pressure, temperature, and connection type. Because diesel at 10 °C has higher viscosity than diesel at 40 °C. This changes the pressure drop across an oval gear meter
Here is the thing. A customer in Vietnam asked for a fuel consumption meter for a generator test cell. The first request was DN20. After sending viscosity and flow data, the smaller DN15 meter was correct. The DN15 meter reduced pressure drop and gave better resolution at 15 L/h minimum flow.
Output and Integration for Fleet Telematics
Fleet diagnostics often sends data to a telematics gateway. Use a meter with pulse output if the gateway has a counter input. Use 4-20 mA HART for longer cable runs. Use RS485 Modbus for multi-drop fuel island systems. Silver Instruments offers all three outputs on most oval gear flow meters.
A mining maintenance contractor in Chile uses DN25 oval gear meters on lube oil dispensing carts. They log oil volume per asset via Modbus to a handheld terminal. In practice, the field team reports a measurement drift below 0.2 percent after 18 months.
Recommended Sizing Ranges
DN10 oval gear meter: 0.2 to 20 L/h for diesel, kerosene, and brake fluid.
DN15 oval gear meter: 1 to 100 L/h for diesel fuel return lines.
DN25 oval gear meter: 5 to 300 L/h for engine oil and transmission fluid.
DN40 oval gear meter: 20 to 600 L/h for larger dispenser lines.
Why Silver Automation Instruments for Flowmaster Flow Meter Sizing
Silver Automation Instruments is a flow meter manufacturer and supplier. We build positive displacement flow meters for industrial fuel and oil measurement. We do not sell plastic fuel sensors. Our meters use aluminum or stainless steel bodies, PPS or aluminum rotors, and FKM or PTFE seals. We ship to Australia, Southeast Asia, Latin America, Africa, and the Middle East. Each meter leaves the Nanjing workshop with a calibration certificate for the customer fluid or a close substitute.
Contact Silver Automation Instruments for sizing support.
Tel: +86-25-68650347
Whatsapp: +86-25-52155837
WeChat: +86 15365082610
FAQ on Flowmaster Flow Meter Sizing for Fleet Diagnostics
Q1: What flow meter type is best for vehicle fuel diagnostics?
A positive displacement oval gear flow meter works best for diesel and gasoline from 0.2 to 300 L/h because it holds accuracy at low flow and high viscosity.
Q2: Can Flowmaster sizing handle engine oil and transmission fluid?
Yes. You need viscosity in cP at operating temperature. Oval gear meters with steel or aluminum rotors handle 5 to 500 cP. Above 500 cP use a larger DN or lower pressure drop design.
Q3: What output should I choose for a fleet fuel island?
Use RS485 Modbus if you connect multiple dispensers to a PLC. Use 4-20 mA HART for long wiring to a telemetry unit. Use pulse output for simple totaliser or counter input.
Q4: What pressure and temperature limits apply?
Standard meters cover -20 to 120 °C and up to 40 bar. For higher temperature or pressure, Silver Automation Instruments can quote a stainless steel meter with PTFE seals.
Q5: How do I get a sizing recommendation?
Send your fluid type, viscosity in cP, pressure in bar, temperature in °C, pipe size in DN, and flow range to Silver Automation Instruments. We reply with model, connection size, and price quote.
