Fqi Flow Meter Meaning: Unlocking P&ID Fluid Quantity Indicator Codes in Engineering Documentation
Quick Answer: FQI on a P&ID means Flow Quantity Indicator. Some plant documents also call it Fluid Quantity Indicator, but ISA-5.1 uses Flow Quantity Indicator. This tag means a device shows total flow volume or mass, not only live flow rate. For a fast selection, send us your fluid type, flow range, pipe size DN, pressure bar, and temperature °C.
What Does FQI Mean on a P&ID
On P&ID drawings, instrument bubbles follow ISA-5.1 codes. The first letter F stands for flow. The second letter Q stands for quantity or total. The third letter I stands for indicator. So FQI is a flow quantity indicator. In a DCS or PLC, this tag often means a totalizer display on the operator screen or a local display on the flow meter.
Most engineers skip the Q part and assume any flow meter works. That is a mistake because a standard flow transmitter gives rate only. We have seen many project documents from Vietnam, Indonesia, UAE and Mexico. They use FQI on raw water, diesel, chemical dosing and steam condensate lines. The common point is that the operator needs total volume or total mass, not only live flow. For example, a wastewater plant in Vietnam tags the inlet raw sewage line as FQI because daily flow total matters for environmental reporting.
FQI vs FIC vs FT: Simple Field Differences
FIC means flow indicator controller. It reads flow rate and controls a valve. FT means flow transmitter. It sends a rate signal, usually 4-20 mA HART, to a PLC or DCS. FQI means flow quantity indicator. It can be a flow meter with a built-in totalizer or a separate panel-mounted display that receives pulse or digital signal. The field device often looks the same as a normal flow meter. The difference is in the output and display function.

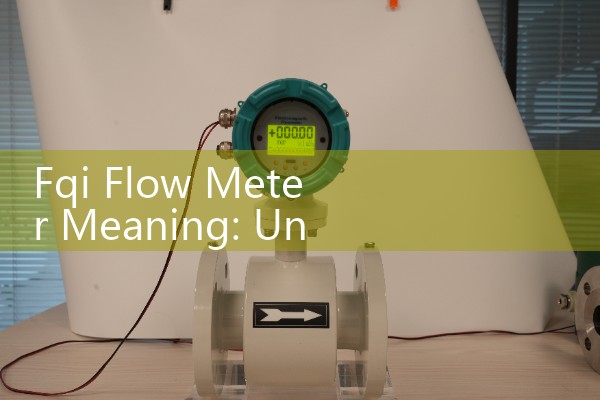

In practice, an electromagnetic flow meter can cover all three tags if it has rate output and pulse output. For FQI tags, we recommend a model with local total display, pulse output, and 4-20 mA HART output. That covers the PLC totalizer and the local operator reading.
Typical Applications Where FQI Appears
FQI tags show up in oil and gas, water treatment, food and beverage, marine fuel transfer, and chemical batching. A few specific examples include raw water intake at a desalination plant in Oman, diesel day tank supply at a power plant in the Philippines, and solvent transfer at a paint factory in Malaysia. These applications require total flow values for billing, inventory, or environmental reporting.
Here is the thing. A flow meter with only rate output will not satisfy an FQI function. The P&ID tag may not change, but the instrument data sheet must include totalization. That is why we ask for application details before quoting.
Key Parameters for FQI Flow Meter Selection
To get a workable quote, we ask for several field data points. Send us fluid name, flow range, pipe size DN, pressure bar, temperature °C, and viscosity cP for fuels or oils. For electromagnetic flow meters, tell us the conductivity µS/cm if you know it. For hazardous areas, specify ATEX Zone 1 or Zone 2. For custody transfer or billing, specify accuracy class. This is not optional. A missing viscosity value for diesel causes the wrong oval gear flow meter selection.
We have seen a customer in Viet
Recommended Flow Meter Types for FQI Tags
Silver Automation Instruments supplies several flow meter types that match FQI functions. For water, wastewater, and chemicals with conductivity above 5 µS/cm, use an electromagnetic flow meter. Sizes range from DN15 to DN400. Pulse output gives total flow. For diesel, fuel oil, and lubricants, use an oval gear flow meter. It handles viscosity up to 2000 cP and gives direct volume total on a local display. For syrups, molasses, and some gases, use a Coriolis mass flow meter. It provides mass total in kg or tonnes and works well for 0.2 percent accuracy. For large pipes where shutdown is not possible, use a clamp-on ultrasonic flow meter with a totalizer function.
A Recent FQI Replacement Case
A paint manufacturer in Southeast Asia contacted us because an FQI on a solvent line failed. The old device showed total liters on a local display. The line was DN25, pressure 2 bar, temperature 25 °C. Fluid was ethyl acetate. Flow range was 0.5 to 5 m3/h. We supplied an oval gear flow meter with local total display and pulse output. The customer connected the pulse to a batch controller for solvent dosing. Installation took less than half a day. That replacement solved the inventory and batching problem without changing the P&ID tag.
How to Request an FQI Flow Meter Quote
Send us your pressure in bar, temperature in °C, pipe size DN, and flow range. We also need fluid type and viscosity for fuel oil or heavy oil. Contact Silver Automation Instruments at Tel: +86-25-68650347, Whatsapp: +86-25-52155837, WeChat: +86 15365082610. Our sales engineers reply within 24 hours.
Frequently Asked Questions About FQI Flow Meter Meaning
Question: What is the full meaning of FQI in P&ID?
Answer: FQI means Flow Quantity Indicator. It describes a device that displays total flow volume or mass, not just momentary flow rate.
Question: Does FQI mean flow rate or total flow?
Answer: FQI means total flow. It can be total volume in m3 or liters, or total mass in kg or tonnes. A normal flow transmitter shows flow rate only.
Question: Can any flow meter be used as an FQI device?
Answer: No. The flow meter must have a totalizer function, pulse output, or local total display. Some models can be configured for both rate and total.
Question: What signal does an FQI send to a PLC or DCS?
Answer: In most projects, the FQI sends a pulse signal for total counting. It can also send 4-20 mA HART for rate monitoring. Some devices support RS485 Modbus for both rate and total.
Question: How do I request a quote for an FQI flow meter?
Answer: Send us your fluid type, flow range, pipe size DN, pressure bar, temperature °C, and viscosity if the fluid is fuel oil. Our team will recommend a flow meter with the correct totalizer output.
